Stargate-N2025 DPU
SmartNIC
Overview
Stargate-N2025 is a P4 programmable DPU with independent intellectual property rights. It includes 2x 25G Ethernet ports, 2x 1000BASE-T GE management Ethernet port.
The P4 network acceleration engine is a VLIW ISA P4 processor designed for vSwitch acceleration, with specific P4 instructions to complete protocol parsing, packet encapsulation and decapsulation. And it supports tens of millions of flow tables forwarding while guaranteeing the wire-speed forwarding performance.

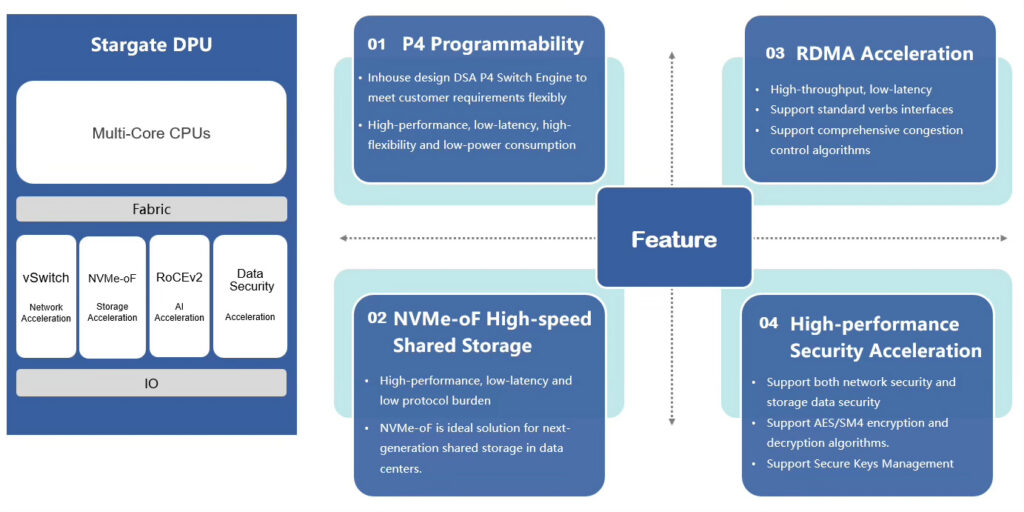

Features
Stargate-N2025 DPU features high-performance, low-latency and high-flexibility. The dynamically programmable P4 engine empowers users to flexibly extend or customize new protocols in the P4 language based on specific application requirements. At the same time, when updating or upgrading P4 applications, the business flow can be uninterrupted.
Thus, Stargate-N2025 can be used in different application scenarios in different fields, and is the competitive network application acceleration solution for OVS, RDMA, Storage acceleration, Bare metal, Virtualization etc.
Hardware Specification
|
Physical form |
Full-height, double-width, three-quarter-length PCle card, supporting independent 1000BASE-T management network port |
|
Computing resources |
eCPU Processor : 6 -core Intel Icelake -D |
|
Memory interface |
FPGA logic memory – 8 GB DDR4 SDRAM x 72 bits SoC logic memory – 16GB DDR4 SDRAM x 72 bits |
|
Host interface |
PCIe Gen4 x 8 |
|
Network interface |
2 x SFP28 25G Ethernet ports |
|
Storage interface |
2GB FPGA QSPI Flash 64MB SoC BIOS Flash |
|
Power consumption |
150W |
Function Specifications
|
IO Virtualization |
SRIOV : 32 PF, 2K VF |
| virtio-net\virtio-blk 1.1 | |
| VirtIO Queue, 2K RX, 2K TX Queues | |
|
Networking |
P4 Programmable Parser |
| Hardware flow table offloading, flow table >= 5 million, TableFlowtable offloading performance ≥ 10K/s | |
| Flow table action, P4 programmable deparser · Forward/discard · NAT/NAPT · Header rewrite · Mirror · Overlay – VxLAN, Geneve, NVGRE, MPLS header encapsulation and decapsulation ( P4 programming is extensible) · Meter · Statistics |
|
| TC -Flow offloading, RTE-Flow offloading | |
| TSO /GRO uninstall, Checksum offload, RSS | |
| PXE | |
| Port binding | |
| Connection Tracking offload, CT table size ≥ 1 million, new session rate ≥ 20K/s | |
|
Hot migration |
· vDPA: · virtio-net · virtio-blk |
|
Cloud Disk |
Bare -Metal mode cloud disk startup |
| · iSCSI\Ceph\iSER client offload,NVMe-oF/TCP | |
| QoS , Hot-Plug | |
|
RDMA |
|
| Queue pair 256 | |
| mode : RC, support PFC, ECN, DCQCN |
